A winch is not a magic button. It is a small electric motor with a gear set, a duty cycle, and a list of ways it can hurt you. Used well it turns a bad day into a twenty minute detour. Used badly it breaks parts, and occasionally it breaks people.
This is the practical version: what your winch is actually rated for, how to rig a pull, what changes when there is no tree in sight, and the failure modes worth knowing before you need them. Where a manufacturer publishes a number or a rule, that is what is quoted here. Nothing in this replaces the manual that came with your winch.
Your winch is weakest when the drum is full
This is the single most useful thing to understand, and most people never hear it.
A winch is rated at its first layer of rope, with almost everything spooled out. Every wrap you add to the drum makes the drum effectively larger, and Warn explains why that costs you: stacking rope "effectively changes the gear ratio of the winch by increasing the diameter." Think of shifting to a larger sprocket on a bike. More speed, less force.
Warn publishes the drop for the ZEON 8, an 8,000 pound winch:
- Layer 1: 8,000 lb
- Layer 2: 6,777 lb
- Layer 3: 5,878 lb
- Layer 4: 5,189 lb
By the fourth layer an 8,000 pound winch pulls about 5,200 pounds. If your rig weighs 5,500 pounds dry and it is buried to the axles in clay, the math stops being academic.
The fix is free: pull more rope off the drum. Warn's own advice is to "pull as much cable off the drum as possible so your winch is pulling as close to its maximum capacity as possible." Rig to a farther anchor, or add a snatch block, and you get both more mechanical advantage and fewer layers on the drum.
One hard limit while you are doing that: never go below 5 wraps with steel rope, or 10 wraps with synthetic. That is what holds the rope to the drum.
The five minutes before you pull
Most winching mistakes are made before the motor ever turns.
- Gloves on. Warn's rule is "always wear heavy leather gloves when handling winch rope." Used rope develops broken strands that will open your hand.
- Look at the anchor honestly. A live tree with a wide base, a rock the size of a refrigerator, or another vehicle. Not a sapling, not a fence post, not a trailer hitch ball.
- Protect the tree. Use a tree trunk protector rather than wrapping the rope around the trunk. It saves the bark and it saves your rope. Warn is explicit that you should "never wrap winch rope back onto itself."
- Plan where people stand, then say it out loud. The Mopar recovery procedure puts it plainly: declare where spectators should not stand, "never behind or in front of the vehicle and never near the synthetic rope."
- Engine running. A winch pulls far more current than the alternator makes, and a long pull on battery alone is how you end up stuck and unable to start.

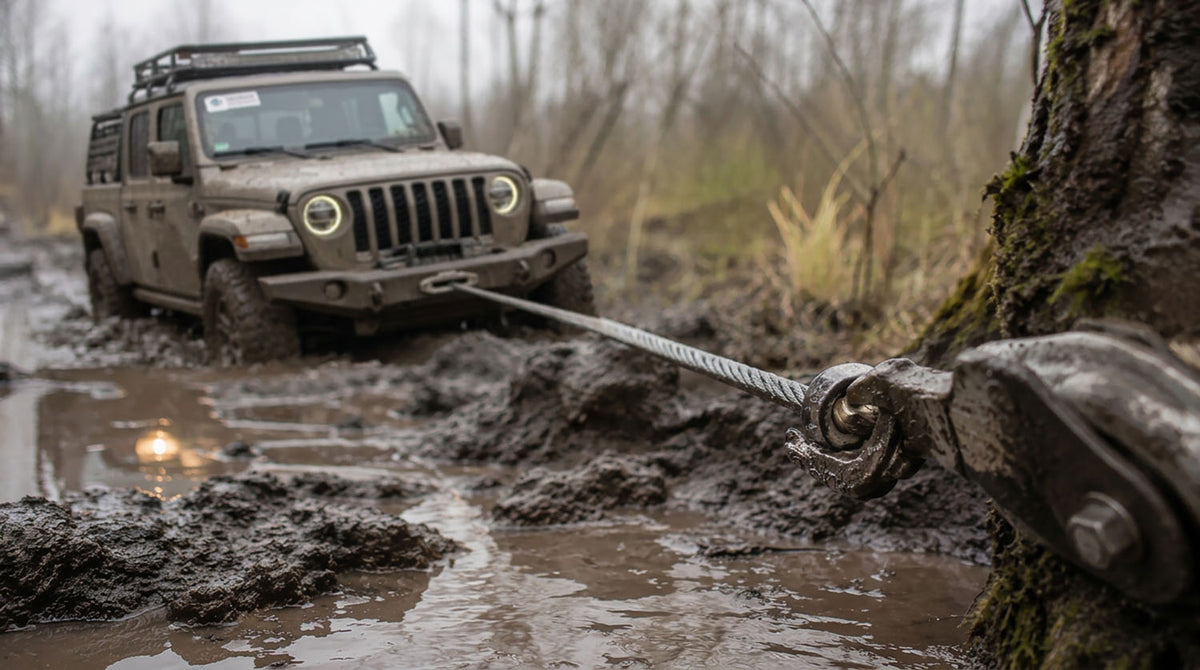

The single line pull
The basic recovery, and the one you will use most.
- Freespool. Disengage the clutch so the drum turns freely, then pull the rope out by hand to the anchor. Powering the rope out under load wastes battery and stacks rope unevenly.
- Rig the anchor. Tree protector around the trunk, both ends joined with a shackle, and the winch rope connected to that. When you tighten a screw pin shackle, the Mopar procedure says to tighten it and then "back-off 1/2 turn" so it cannot seize under load.
- Seat the load correctly. The load belongs in the throat of the hook, never on the tip and never on the latch.
- Re-engage the clutch and take up slack until the rope is just tight.
- Put a dampener on the line. Covered below. This is not optional.
- Pull in stages. Short bursts, then pause. Warn's warning is direct: "the longer the pull, the more heat that is created. Prolonged winching without cooling the winch motor will damage the motor."
Let the winch do the work. The driver in the stuck vehicle can steer, but flooring it while the rope is loaded is how ropes snap and bumpers leave vehicles.
When one line is not enough
A snatch block is a pulley that the winch rope runs through and doubles back from. Rigged to an anchor with the rope returning to a recovery point on your own vehicle, it gives you roughly a two to one mechanical advantage. Warn describes using one to "double line out more winch rope," which "increases pulling power."
Two things happen at once, and both help:
- Your pulling force roughly doubles. A 10,000 pound winch behaves like a 20,000 pound winch, minus friction.
- More rope comes off the drum, which puts you back down toward that stronger first layer.
The trade is speed. For every foot of rope the drum takes in, the vehicle moves about six inches. On a hard pull that is exactly the trade you want.
Changing the direction of the pull
A snatch block anchored off to the side, with the rope carrying on to a second anchor, does something different: it redirects the pull without adding mechanical advantage, because the rope does not return to your vehicle.
That matters because winching at an angle drags the rig sideways and stacks rope against one end of the drum. Redirecting lets you pull straight up the trail even when the only solid anchor is off to one side.
Anchors, including when there are none
Another vehicle is a legitimate anchor, with one rule people get wrong. The anchor vehicle goes in neutral, not park. The Mopar procedure says to "put the transmission in NEUTRAL, apply the hand brake and block its wheels." Leaving an automatic in park puts the entire load on the parking pawl, which is a small piece of metal that was never meant to take it.
No trees and no vehicles is the harder case, and the honest answer is that your options narrow. A buried spare tire or a purpose built ground anchor can work in sand. So can a second vehicle parked and anchored to a third. If none of that exists, traction boards, a shovel, and lowering tire pressure will usually do more for you than the winch will.
The rules that are not negotiable
Every one of these comes from a manufacturer, not from trail folklore.
- Never step over or straddle a loaded line. Stand clear, and keep everyone else clear.
- Use a dampener. Warn's instruction is to "lay something over the winch rope midway between the winch and the anchor point to absorb energy should the winch rope snap loose." A purpose made dampener, a recovery bag, or a heavy blanket all work. Synthetic rope carries less stored energy than steel, but a loaded line that lets go still goes somewhere.
- Nobody touches the rope while another person is on the switch. Mopar states it as a flat prohibition, along with never putting fingers inside the hook area while powering in.
- Never stand under a suspended load.
- Wind the rope onto the bottom of the drum, not over the top. Winding the wrong way costs you rated capacity and stresses the mount.
Running the factory winch on a Wrangler
For 2026, Jeep lists a front Warn winch as available on the Willys, two-door only, alongside available steel bumpers. The operating routine is the same as any electric winch, with a few details specific to the factory installation.
Put gloves on and disengage the clutch, free the hook from the fairlead loop, and use the hook strap to walk the rope out to the anchor. Connect the remote at the control box on the front of the winch, then engage the clutch. If you would rather run the winch from the driver's seat, pass the remote lead through a window rather than closing it in a door.
Spooling back matters as much as pulling. Keep light tension on the rope so it lays in even layers instead of burying itself, walk the hook back toward the bumper, store it on the outermost fairlead loop, and take up the slack. Disconnect the remote, cap the plug, and keep the remote somewhere clean and dry.
Jeep's own guidance is worth repeating: read the installation and operations guide and the winching techniques guide that came with the vehicle before you use it, because that document, not this one, is the authority for your specific winch.
What actually fails
In rough order of how often it bites people:
- The motor, from heat. Long continuous pulls with no cooling pause. Electric winches are not continuous duty equipment.
- The anchor. Undersized trees, rotten stumps, and rocks that turn out to be the top of a much smaller rock.
- The attachment point. Tie-down loops and bumper brackets are not rated recovery points. Recovery points are engineered, bolted to the frame, and rated.
- The rope, at the hook. A standard hook with a spring latch can unload if the geometry goes wrong. A closed link style end fitting removes that failure mode entirely.
- The operator's patience. Nearly every serious winching injury involves somebody standing somewhere they knew they should not stand.
Once you are unstuck, the rest of trail sense applies. If you are newer to this, our Jeep off-roading beginners guide covers the fundamentals, airing down prevents a fair share of the stucks that need a winch at all, and trail etiquette covers who helps whom and how.
Frequently asked questions
When is a winch strongest?
On the first layer of rope, with the drum nearly empty. Warn rates the ZEON 8 at 8,000 pounds on layer one and 5,189 pounds on layer four, because added wraps increase the drum diameter and change the effective gear ratio. Pulling more rope off the drum, or adding a snatch block, puts you back toward full rated capacity.
Why use a winch damper or blanket?
To absorb energy if the line lets go. The instruction is to lay it over the rope roughly midway between the winch and the anchor. Synthetic rope stores less energy than steel cable, but a loaded line that fails still travels, and a dampener drops it toward the ground instead.
How do you use a winch for self recovery?
Rig from your own winch to a fixed anchor ahead of you, put a dampener on the line, then pull in short stages while the driver steers and keeps everyone clear. The goal is to move the vehicle under control, not to yank it free in one long pull that overheats the motor.
How do you winch when there are no trees?
Use another vehicle in neutral with the hand brake set and its wheels blocked, a buried spare or a dedicated ground anchor in sand, or a large rock rigged with a strap. If there is no sound anchor at all, traction boards, a shovel, and lower tire pressure will usually get you moving before the winch will.
What size winch do I need?
The common guidance is roughly one and a half times the vehicle's gross weight, then remember that the rating applies to the first layer only. Factor in mud, a slope, and a partly full drum, and a winch sized right on paper can come up short in the real world.
Which way should the rope spool onto the drum?
Onto the bottom of the drum, the mount side, for a standard vehicle installation. Warn's instruction is to always wind the rope on the bottom of the drum. Spooling over the top reduces capacity and loads the mount incorrectly.
Can you use a winch to tow a vehicle?
No. A winch is built to pull a load a short distance under control, not to tow at road speed, and the rope, the mount, and the motor are not designed for sustained towing loads. Use a tow strap and a proper recovery point, or call a tow truck.
Sources: Warn Industries basic guide to winching and published pull-by-layer specifications, Mopar vehicle recovery procedures, and Jeep 2026 Wrangler model information. Winching is inherently hazardous. Follow the manual supplied with your winch and vehicle, which takes precedence over any general guide including this one. Jeep is a registered trademark of FCA US LLC, and Warn is a registered trademark of Warn Industries. Jeep Decal Store is not affiliated with, sponsored by, or endorsed by either.
