Jeep Transfer Case Fluid: What Jeep Actually Says

On the normal maintenance schedule, Jeep does not ask you to change your transfer case fluid at all. It asks you to inspect it at 30,000, 90,000, and 150,000 miles. A change shows up only on the severe-duty schedule, at 60,000 and 120,000 miles, and only for police, taxi, fleet, or frequent trailer-towing use. That's the whole official answer for a Wrangler JL or Gladiator JT, and it surprises people, because the interval you hear repeated everywhere else is not in the book. There's also a wrinkle in that schedule worth your attention, and it's the reason this article exists.

What the transfer case does, and what the fluid is for

The transfer case is the box bolted to the back of your transmission that decides where engine torque goes. In 2H it sends everything to the rear axle. In 4H it locks the front and rear driveshafts together so both axles turn at the same speed. In 4L it does that through a reduction gear, 2.72:1 on Command-Trac and 4:1 on Rock-Trac, which is why the manual notes that in 4L your engine turns roughly three times faster than in 2H at a given road speed, or four times on a Rubicon.

The fluid inside is not gear oil. Both manuals specify Mopar ATF+4 automatic transmission fluid, the same fluid the manual transmission takes, while the axles get thick 75W gear lubricant. That tells you what's happening in there: fast-moving parts that need a thin fluid to reach everywhere and carry heat away, not a hypoid gearset that needs a heavy extreme-pressure film. The fluid is also the medium your shift mechanism moves through, which is why the manual warns that in cold weather you may feel increased shifting effort until it warms up, and that this is normal.

What Jeep actually says, and the part nobody mentions

Here is the normal schedule for a 2024 Wrangler JL, straight from the maintenance plan:

• Inspect transfer case fluid at 30,000, 90,000, and 150,000 miles (or 3, 9, and 15 years, whichever comes first)
• No transfer case fluid change is scheduled under normal use

Then the severe duty rows, which sit in a separate table on the following page. Read these three together, because the wording is the interesting part:

• Change transfer case fluid at 60,000 and 120,000 miles "if using your vehicle for any of the following: police, taxi, fleet, or frequent trailer towing"
• Change front and rear axle fluid at 40,000, 80,000, and 120,000 miles "if using your vehicle for police, taxi, fleet, off-road or frequent trailer towing"
• Change the manual transmission fluid every 30,000 miles for trailer towing, snow plowing, heavy loading, taxi, police, delivery service, off-road, desert operation, or sustained high speed driving in heat above 90 degrees F

Read that again. Jeep names off-road use as a severe duty trigger for your axle fluid. It names off-road and desert operation for your manual transmission fluid. It does not name off-road for the transfer case. The row above it and the row below it both do, and the transfer case row sits between them, naming only commercial-duty use and towing. This is not a one-year typo, either. The same three rows, with the same wording, appear in the 2024 Gladiator JT manual and again in the 2026 Gladiator manual.

In fairness, two things cut the other way in the same book. First, the manual defines the category plainly under the heading "Severe Duty All Models": vehicles operated in a dusty and off-road environment, or predominantly at idle or very low engine RPM, are severe duty vehicles. So Jeep clearly considers off-road use severe; it just didn't extend that row to the transfer case. Second, the 6.4L Wrangler runs on a different maintenance plan entirely, and on that plan "drain the transfer case and refill" appears as an ordinary line item every 30,000 miles with no conditions attached. Same transfer case family, different engine, unconditional fluid change. Worth knowing before anyone tells you Jeep thinks this fluid lasts forever.

What experienced owners do, and why they differ

The interval repeated in videos and forum posts is 30,000 miles with a manual transmission and 60,000 with an automatic. It is not in the JL or JT schedule, and the schedule doesn't distinguish the transfer case by transmission type at all. It looks like a misread of the severe duty table: the manual transmission fluid row calls for 30,000 miles, and the transfer case row two lines down calls for 60,000. That doesn't make either interval bad; it just means you shouldn't repeat it as a factory spec, or let a shop tell you the manual demands it.

Plenty of people who wheel hard change this fluid on their own schedule anyway, and the reasoning holds up:

• Water is the real enemy, and the manual agrees. Jeep's off-road guidance says that when driving through water, don't exceed 5 mph, check the depth first, and "check all fluids afterward." Water intrusion is the failure mode that actually kills transfer cases, and it doesn't care what the mileage table says.
• An inspection is most of the work already. To inspect this fluid, you have to get under the vehicle and pull the fill plug, which puts you two turns of a wrench and two quarts of ATF+4 from a fresh fill.
• The 392's schedule sets a useful floor. If Jeep is comfortable draining and refilling this fluid every 30,000 miles on the 6.4L with no conditions attached, doing the same on a heavily wheeled 3.6L is not overkill.

There's an honest counterargument, though, and it's why the axles and the transfer case probably shouldn't be treated the same. Your differentials sit at the very bottom of the axle housings, the first place water and grit collect on a crossing. The transfer case sits higher, tucked behind the transmission and shielded. Off-road punishes a differential harder, and that may be exactly why Jeep put off-road in one row and not the other. If you're going to prioritize, prioritize the axles.

Where most experienced owners land: follow the inspection schedule if you stay on pavement, change it around every 60,000 miles if you tow or wheel regularly, and check it after any water crossing regardless of mileage.

Doing the job yourself

This is under-vehicle work on a hot drivetrain, so the safety part is not boilerplate.

• Work on level, solid ground. Concrete, not gravel or a sloped driveway. Level matters twice: for your safety, and because the fill level is defined relative to a level vehicle.
• Never get under a vehicle supported only by a jack. Use jack stands rated for the weight, on the frame, and shake the vehicle before you slide under it. A jack is a lifting tool, not a holding tool.
• Chock the wheels still on the ground and set the parking brake.
• The fluid can be hot enough to burn you. Warm fluid drains better, but let a Jeep that just came off the highway cool until you can rest a hand on the housing.
• Wear eye protection. You'll be working directly under the plug.

Then the job itself:

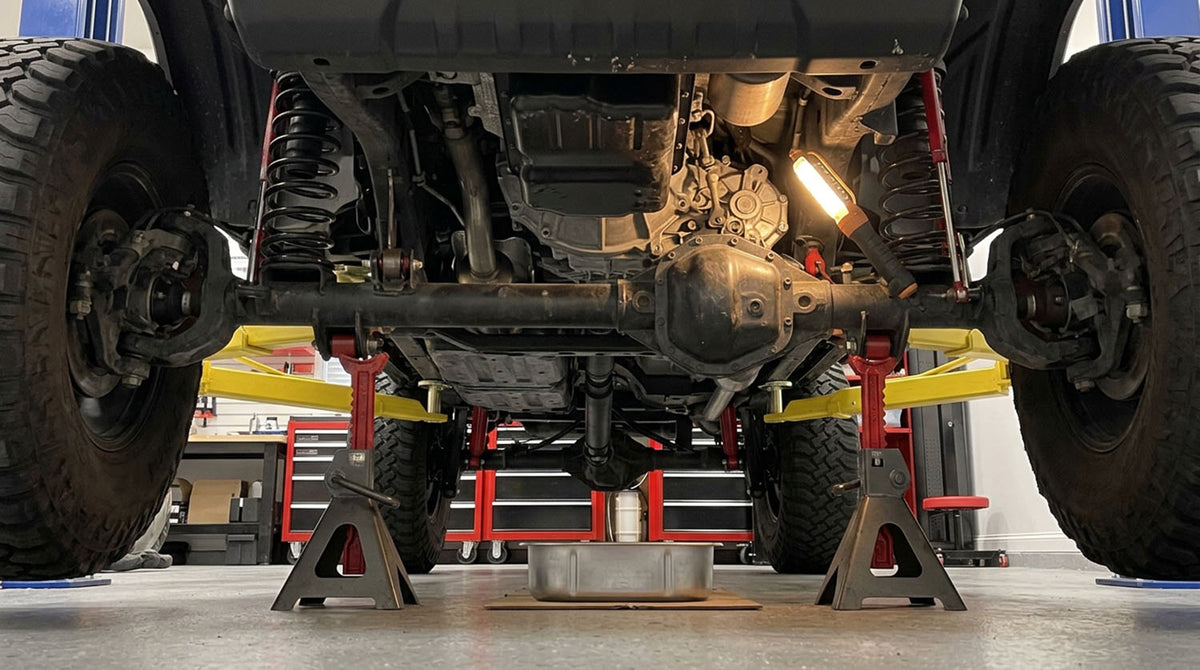

1. Get it up and level at all four corners. Nose-up or leaning, and your fill level will be wrong.
2. Deal with the skid plate. Jeep protects the fuel tank, transfer case, and automatic transmission oil pan with factory skid plates and bars, so expect something in the way. Some people drop it, others reach around it. Look before you buy tools.
3. Loosen the fill plug first, before you drain anything. This rule saves your weekend. If it turns out to be seized after you've dumped the old fluid, your Jeep is stuck on stands.
4. Drain into a pan you can read. The manual doesn't publish a transfer case capacity, so measure what comes out. That's your fill target, and it beats any number you'll find online.
5. Look at what came out. Fresh ATF+4 is red and clear, dark brown is old but normal, and milky or tan means water got in. A fine gray haze on the drain plug is normal wear. Metal flakes you can feel are not.
6. Clean and reinstall the drain plug, torqued to the value in the factory service manual for your model year. Figures circulating in forums for this plug disagree widely, so use the book. Overtightening into an aluminum housing is an expensive mistake.
7. Fill with Mopar ATF+4 until it sits at the bottom edge of the fill hole with the vehicle level. Buy two quarts and expect to have some left.
8. Reinstall the fill plug, lower it, drive it, and look underneath the next morning for drips.

Call it an hour if the plugs cooperate. It's a good job to learn on, because the fill is self-limiting: when fluid runs back out of the hole, you're done.

While you're under there, look over the rest of the front end. What actually causes death wobble covers the steering and suspension parts worth inspecting on the same pass, and Jeep bolt patterns and lug torque specs by generation have the numbers for when the wheels go back on. Newer to all of this? Start with off-roading 101.

Frequently asked questions

How often should I change the transfer case fluid on a Jeep JL or JT?

On the normal schedule, Jeep doesn't schedule a change. It calls for inspecting the fluid at 30,000, 90,000, and 150,000 miles. A change appears only on the severe-duty schedule, at 60,000 and 120,000 miles, for police, taxi, fleet, or frequent trailer-towing use.

Does off-road use mean I need to change my transfer case fluid sooner?

Not according to Jeep's schedule, which is genuinely unusual. The axle fluid and manual transmission fluid rows both list off-road as a severe-duty trigger. The transfer case row does not, in the 2024 Wrangler, 2024 Gladiator, and 2026 Gladiator manuals alike. Jeep puts your differentials on an accelerated off-road schedule at 40,000-mile intervals.

Is the 30,000-mile transfer case interval real?

Not as a transfer case spec. 30,000 miles is the severe duty interval for the manual transmission fluid, two rows above the transfer case row in the same table. The transfer case severe-duty interval is 60,000 miles, and the schedule doesn't distinguish by transmission type at all.

What fluid does a Jeep Wrangler or Gladiator transfer case take?

Mopar ATF+4 automatic transmission fluid. Both the 2024 Wrangler JL and 2024 Gladiator JT manuals list it by name in the chassis fluids table. ATF+4 is the trade name for a Chrysler material standard, which is why aftermarket bottles list a standard number that doesn't appear in the owner's manual.

How much fluid does the transfer case hold?

The owner's manual publishes capacities for the fuel tank, engine oil, and cooling system, but not the transfer case. Drain into a measurable pan and put back what came out. Two quarts is a safe amount to have on hand.

What does bad transfer case fluid look like?

Milky, tan, or cloudy means water has gotten in, and that needs attention now rather than at the next interval. Dark brown is aged but not an emergency. A light gray film on the drain plug is normal wear. Flakes you can feel between your fingers mean something inside is coming apart.

The short version

Jeep asks you to inspect this fluid three times in 150,000 miles and to change it only under a list of conditions that leaves off-road out, even though the two rows around it include it. Make your own call from there, and check it after every water crossing.
